Workflow

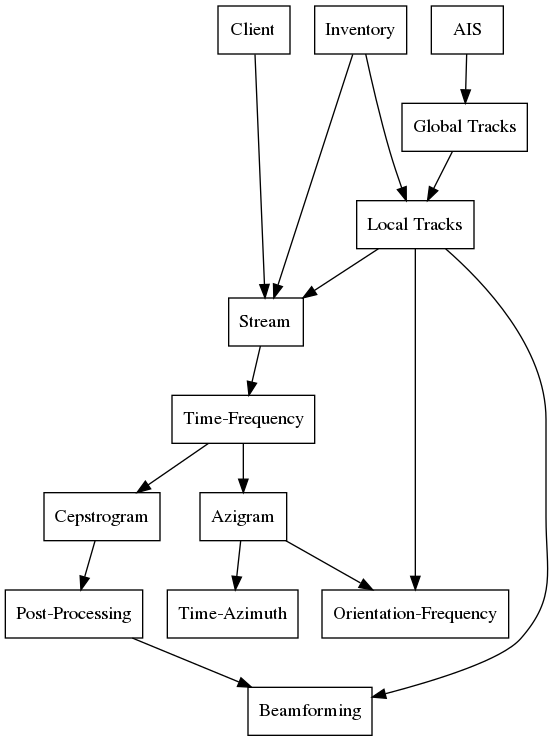

Here is presented the general workflow used to process seismological data along with AIS archive in Obsea. A Diagram summarize all the interactions. Functions used are elicited along with the module where they are implemented yet all function can be imported directly from the root obsea module.

Users are generally asked to provide three type of Inputs:

• Client: An ObsPy client which will be used to get the seismological data through its get_waveforms method. Collecting data from data server can be perform through FDSN based client. Using local data stored as an SDS file-system is also possible.
• Inventory: An ObsPy Inventory which contains information about the stations like its location and its instrumental responses.
• AIS: A Pandas DataFrame which must at least have four columns: 'mmsi', 'lon', 'lat' and 'timestamp' (As POSIX timestamps in seconds). Obsea provides helper function to import CSV files of AIS logs from several providers in the ais module.

Seismological data are handled with the Obspy Stream class which embed each components as a Trace (documentation can be found here). Responses must be attached in order to remove the instrumental response. This is can be done by attaching the responses stored in the Inventory to the Stream. If working with source of known trajectories, local tracks ca be provided to the load_stream (in the io module) function to load the relevant time segment when the source passes close by the instrument.

When working with known source positions, AIS data is processed into tracks per ship thank to the gis module. This is done in two steps. First, Global Tracks are performed with the read_ais function. Second, if working with stations, Local Tracks in a local coordinate reference system in meters where zero is the instrument location are performed for global tracks passing close enough to the station of interest. This is performed with the select_tracks function which needs the Inventory to know the instrument location.

In Obsea, all 2D representations are handled thanks to the Xarray library. Coordinates must have those names: 'time', 'frequency', 'azimuth', 'quefrency', 'orientation', 'x', 'y'. Lets list available 2D representations:

• Time-Frequecy: STFT is computed for each Trace in a Stream with the time_frequency function (in the core module). If responses are available, instrumental response removal is possible as that stage (water level deconvolution).
• Azigram: Horizontal Direction of Arrival is computed with the azigram function (in the core module) for each time and frequency from the 4 time-frequency representation of the 4 components of the instruments (The vertical component can be omitted though).
• Cepstrogram: Can be performed for any time-frequency representation with the cepstrogram function of the core module (usually the pressure channel is used).
• Time-Azimuth: Can be performed for any azigram with the time-azimuth function of the core module.
• Orientation-Frequency: This representation is useful for reorienting OBSs. Need an azigram and a local track. Computed with the orientation-frequency function of the core module.
• Post-Processing: This is not a 2D representation but many post-processing steps are gathered in the processing module.
• Beamforming: Beamforming in the quefrency domain can be used to retrieve an OBS localization. Local tracks are used as antennas to process cepstrograms with functions in the beamforming module.

To see how to implement all those steps with Obsea, have a look to the tutorial or the example scripts.
